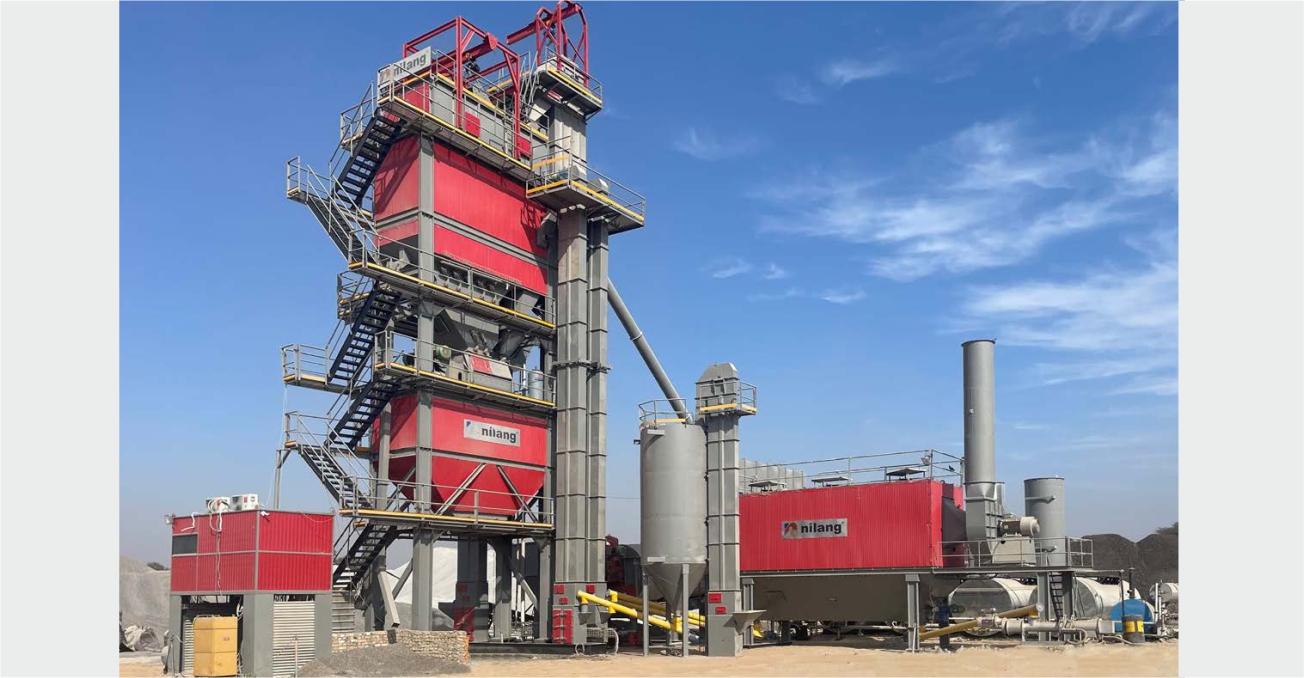

Asphalt Batch Mix Plant

Nilang ABP Series Plants offer our customers the best possible solutions when it comes to producing the highest quality asphalt in an economical process.

From raw materials to the development of Asphalt Equipment, develops and manufactures all core components in-house. Short paths in production, modern manufacturing processes. An asphalt mixing plant has to be designed so that all substances are available in the correct volume, with the correct temperature, at the right time and at the defined location. In addition to this, the processes have to be safe, economical and environmentally friendly.

ABP Series offers re-use of recycled asphalt, it is a high priority for the economy when it comes to conserving natural resources.

Asphalt Batch Mix Plant - Model and Capacities:

Technical Specifications of Asphalt Batch Mix Plants

MODEL			ABP 60	ABP 80	ABP 100	ABP 120 Combat	ABP 120	ABP 160	ABP 200	NAMIX 260
Batch Size		kg	750	1000	1200	1500	1500	2000	2500	3300
Cycle Time		sec	45	45	45	45	45	45	45	45
UNITS
Cold Feed Bins	No. of Bins / Capacity	Nos/m³	4/20	4/25	4/25	4/30	4/30	4/40	4 / 5	5 / 6
Charging Conveyor	Capacity	tph	80	100	120	140	140	180	220	280
Thermo Drum	Dryer ( L x D)	mtr	6 x 1.2	6 x 1.5	7 x 1.6	7.5 x 1.8	7.5 x 1.8	8 x 2.1	8 x 2.1	9 x 2.3
	Drive Type		4 W Friction Drive
Burner	Type		High Pressure, Fully Automatic, Modulating
	Fuel		Diesel / LDO / Furnace Oil
	Capacity	MW	6	8	10	12	12	14	14	18
Hot Elevator	Capacity	tph	80	100	120	140	140	180	220	280
TOWER UNIT
Filler Screw	Capacity	tph	10	12	15	20	20	25
Screening Unit	Screening Method Inclined Liner Vibration No. of Deck		2	2	2	2	4	4	5	6
	Screening Capacity	tph	80	100	120	140	140	180	260	260
Hot Aggregate Bin Unit	No. of Bins		4	4	4	4	4	4	5 + 1	5 + 1 / 6 + 1
Weighing Unit	Aggregate Hopper Capacity	kg	1000	1200	1400	2000	2000	2200	3200	4200
	Filler Hopper	kg	150	200	200	300	300	300	500	500
	Bitumen Hopper Capacity	kg	175	200	200	225	225	225	350	350
MIXER UNIT
	Type		Twin Shaft Hot Oil Jacketed						Twin Contra-Rotating Mixer
	Mixer Capacity	kg	750	1000	1200	1500	1500	2000	2500	3300
POLLUTION CONTROL UNIT
Primary	Reverse Air Flow		Centrifugal Cyclonic Pre Separator
Secondary	Bag House Filter		Bag House Filter Reverse Air Flow
	Filter Area	m²	180	250	250	300	380	380	535	880
Control Panel	Type		Siemens PLC (SCADA on Request)
ACCESSORIES
Filler Silo	Capacity Range	m³	2	3	3	3/7	3/7	3/7	3/7/11/18/28	3/7/11/18/28
Bitumen Tank	Capacity Range Direct / Thermic Oil Heating	ton	20	20	30	30	30	30	20/30	30/50
Thermic Oil Heater	Heating System Hot Oil Heater Capacity	kcal/hr	Direct	300000	300000	300000	500000	500000	600000/800000	800000/1000000
Hot Mix Storage Silo	Capacity Range (Optional)	ton	10	15	15	15/50/100	15/50/100	15/50/100	40 / 80	50 / 100
