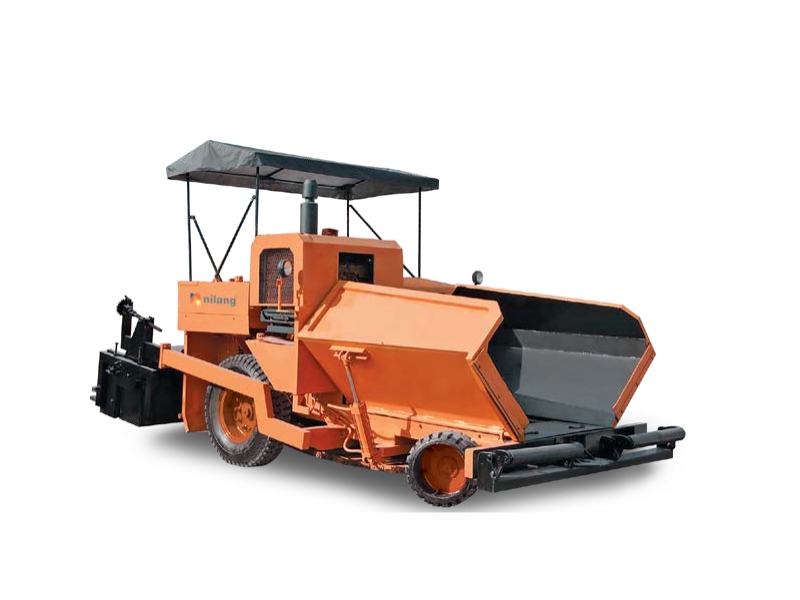

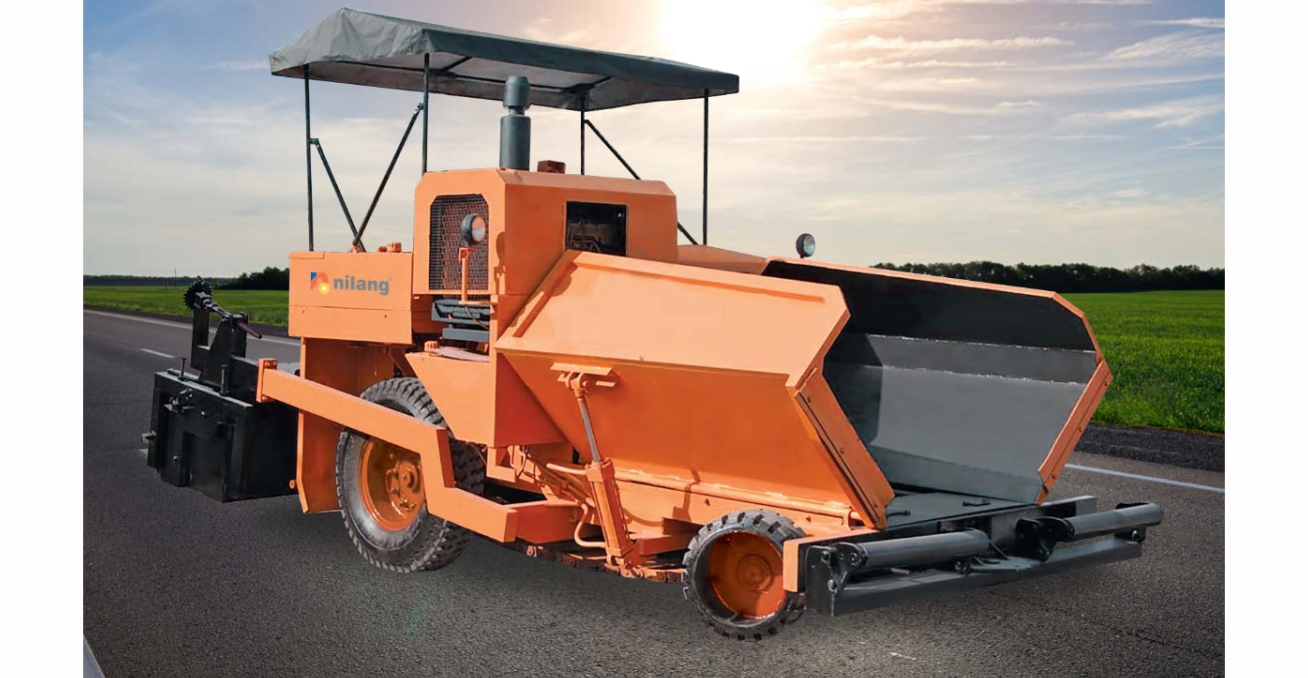

Mechanical Paver Finisher

The WM 6 with hydraulically extendible screed is for contractors seeking ease of operation and maximum uptime

The wheeled paver with hydraulically extendible screed is a dual-application machine, handling both asphalt and wet mix

WM 6 meets all the laid down specifications of the authorities in all the markets where it is used

The paver effortlessly shifts between jobs featuring asphalt and wet mix

High machine uptime

Paving tolerances that meet or exceed those specified by MORTH specifications.

Exceptional value for money

Quality aftermarket support

Techanical Specifications of Mechanical Paver Finisher

MODEL	WM 6
Operating Height	3050 mm
Shipping Height	2430 mm
Length	5800 mm
Operating Width	3120 mm
Shipping Width	2700 mm
Weight (approx.)	10 tons
Truck Dumping Clearance	600 mm
Wheel Base	2500 mm
Engine Make	Kirloskar BS-IV Model 4R1190TA1 or Equivalen
Engine Output	110 HP @ 2200 rpm
Battery	12 Volts (Heavy Duty)
Tyres - Front 2 nos - Solid Rubber	558 x 405 x 305 mm
Tyres - Rear 2 nos - Pneumatic	12 x 20 - 18 ply
Paving Thickness	10 - 200 mm
Paving Speed	1.25 - 23 metres
Paving Width	2.5 to 4.5 metres (Hydraulically Extendable Screed)
Travel Speed	0 - 16 KMPH
Steering	Power Steering
Hopper Capacity (approx.)	4 cubic meter
Fuel Tank Capacity	120 litres
Hydraulic Oil Tank Capacity	80 litres
Screed Heating	2 nos Oil Burner
Auger Diameter	300 mm
Screed Vibration in Hz	.-1 to +3
Standard Accessories	Tool Box
