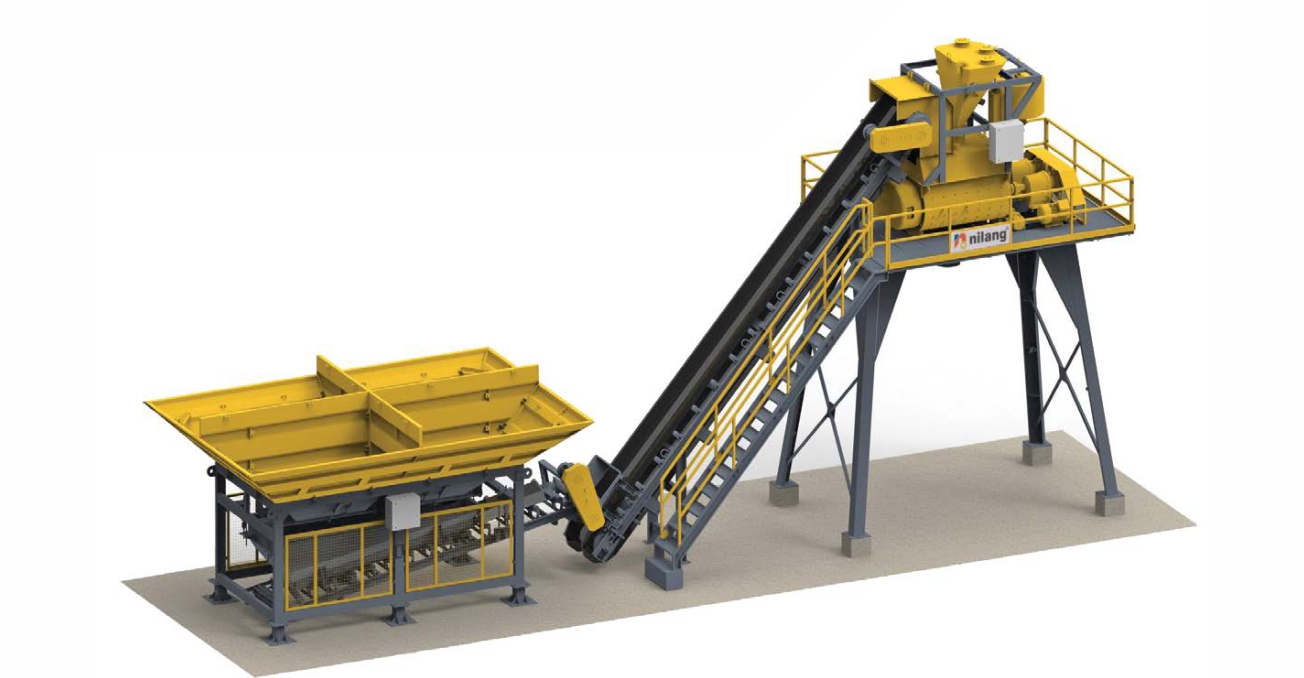

Concete Mixing Plants - CBP Series

Nilang make Compact & Stationary Concrete Batching Plants are made to meet the requirement of market needs.

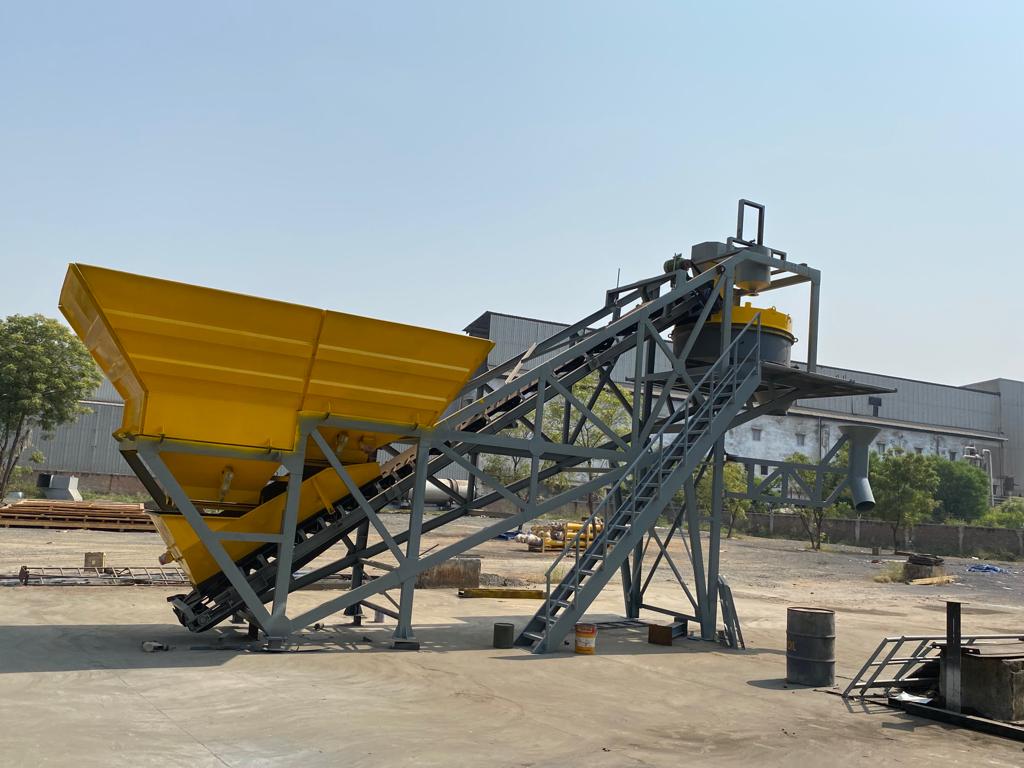

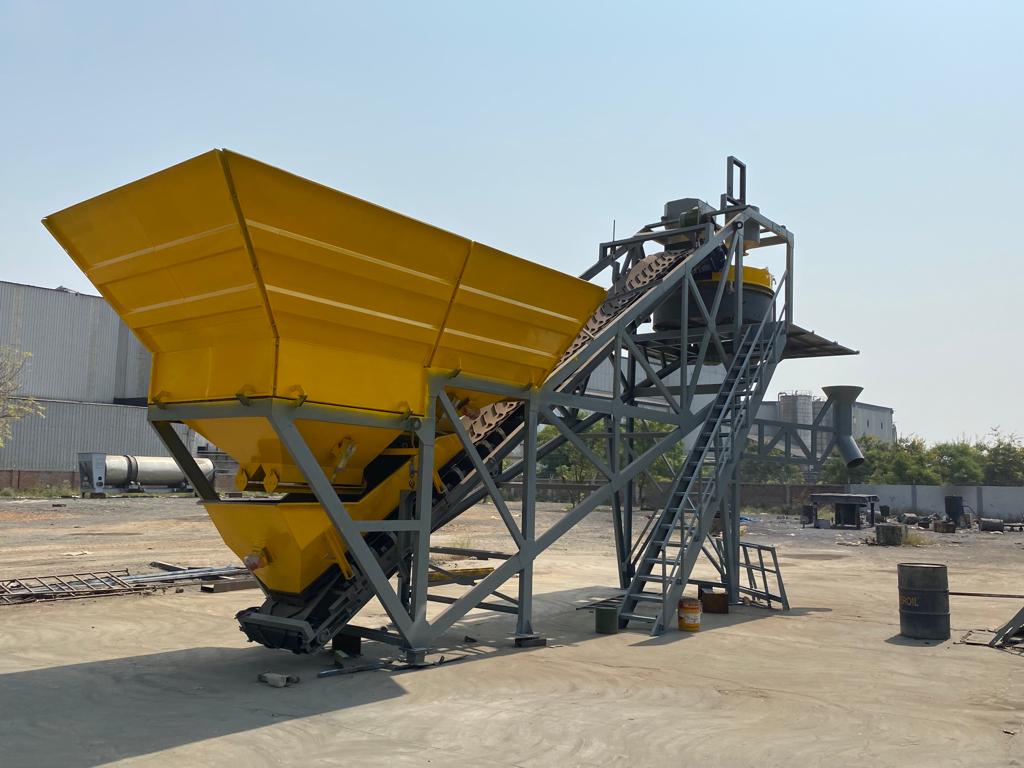

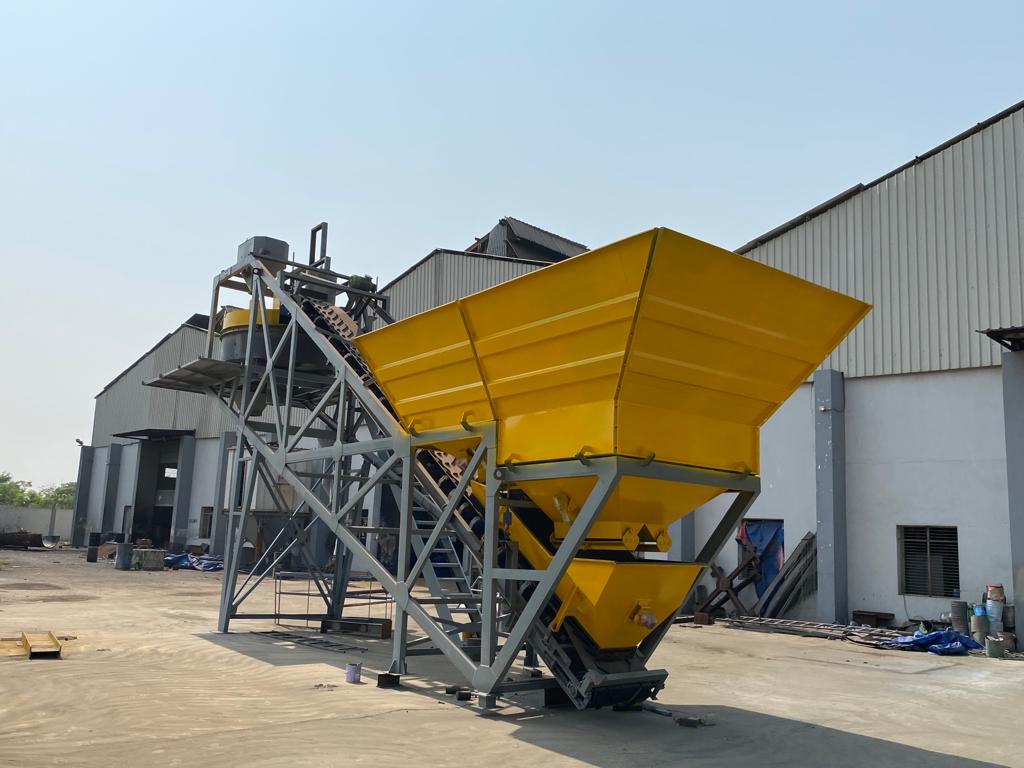

Compact Concrete Batch Plants is best design suitable for RMC projects because it consumes less space on site and gives accurate output, having whole plant assembly on single chassis with provision of material feeding conveyor so no need to make ramp to feed the bins of the plant, comes with PLC based control panel which makes plant operating easy and trouble free, having availability of fabricated skid to avoid civil foundation work at site at additional cost.

Stationary Concrete Batch Plants are composed of huge twin shaft mixers. They are designed to work at full capability, efficiency and reliability for a variety of large scale and high-quality concrete production. Stationary Concrete Plant is built to offer maximum rated production capacity, work long hours, and are yet boast immense flexibility to be used for several projects – especially massive infrastructural and precast concrete projects.

Techanical Specifications of Concete Mixing Plants

MODEL		NCCP 30	NCCP 45	NCCP 60
Output capacity	m³/hr	30	45	60
Plant assembly		Whole assembly on single chassis
Mixer type		Turbo pan type mixer/ twin shaft mixer
Main reduction gear		Imported Planetary gear box
Main mixer drive	hp	30	40	50
Material storage system		2 x 2 cross bin feeder
Material storage capacity	m³	30	40	50
Material weighing system		Digital load cell based weighing system
Material feeding system		Through inclined belt conveyor
Cement feeding system		Through inclined screw conveyor
Water weighing system		Digital load cell based weighing of water in separate tank
Admixture dozing system		Auto admixture dozing system
Control panel		Fully automatic PLC based control panel
Control cabin		Provided
Concrete discharge height		4.2 meter from ground level
Total connected power	hp	62	77	98
Suggested DG set	kva	82	100	125

---

MODEL (Stationary)		NSCP 20	NSCP 30	NSCP 45	NSCP 60	NSCP 90
Output capacity	m³/hr	20	30	45	60	90
Mixer unit		Turbo pan type mixer / twin shaft mixer
Main mixer reduction gear box		Imported Planetary gear box
Main drive/ electrical motor	hp	20	15 x 2=30	20 x 2=40	25 x 2=50	40 x 2=80
Material storage unit		2 x 2 cross bin	In line four bin feeder
Material storage capacity	m³	20	30	45	60	90
Material weighing system		Digital load cell based weighing system
Batch feeding system		Through inclined belt conveyor/inclined skip bucket
Cement feeding system		Through screw conveyor
Water weighing system		Digital load cell based weighing of water in separate tank
Ad mixture dozing system		Auto admixture dozing system
Control panel		Fully automatic PLC based control panel
Control cabin		Provided
Concrete discharge height		4.2 meter from ground level
Total connected power	hp	52	72	97	112	140
Suggested DG set	kva	62	100	125	140	175

OPTIONAL ACCESSORIES:

• Material feeding conveyor/rotary chute conveyor • Computer SCADA system and software • Cement storage silos • Fly ash feeding system and storage silos • Moisture controlling system • Water chilling plant
